LumiCloud™ Bespoke

The LumiCloud™ Bespoke is a custom luminous cloud with endless design possibilities. Extremely versatile, it can be created in any shape and virtually no size limitation.

Customization

Organic shapes can be an integral part of your illuminated designs. Available in static white, tunable white, RGBW, and RGB pixel controlled, the TLS LumiCloud™ has the lighting solution you require

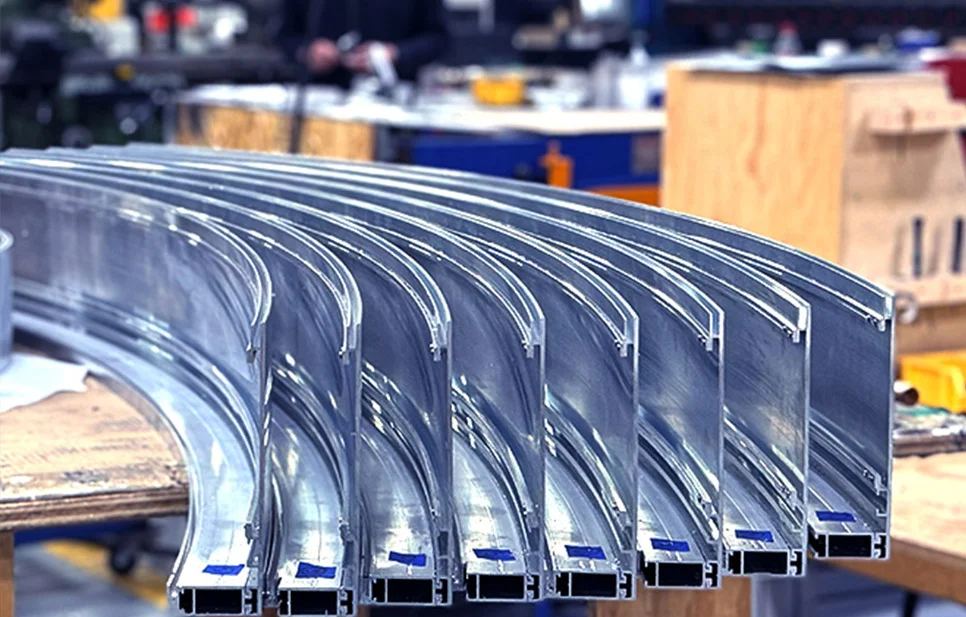

Designed, manufactured, assembled and shipped from our facilities in Montreal, Canada, our simplistic design enhances architectural illumination and improves room acoustics. Whether your design requires recessed, suspended or surface mounted panels, TLS LumiCloud™ has a turnkey solution.

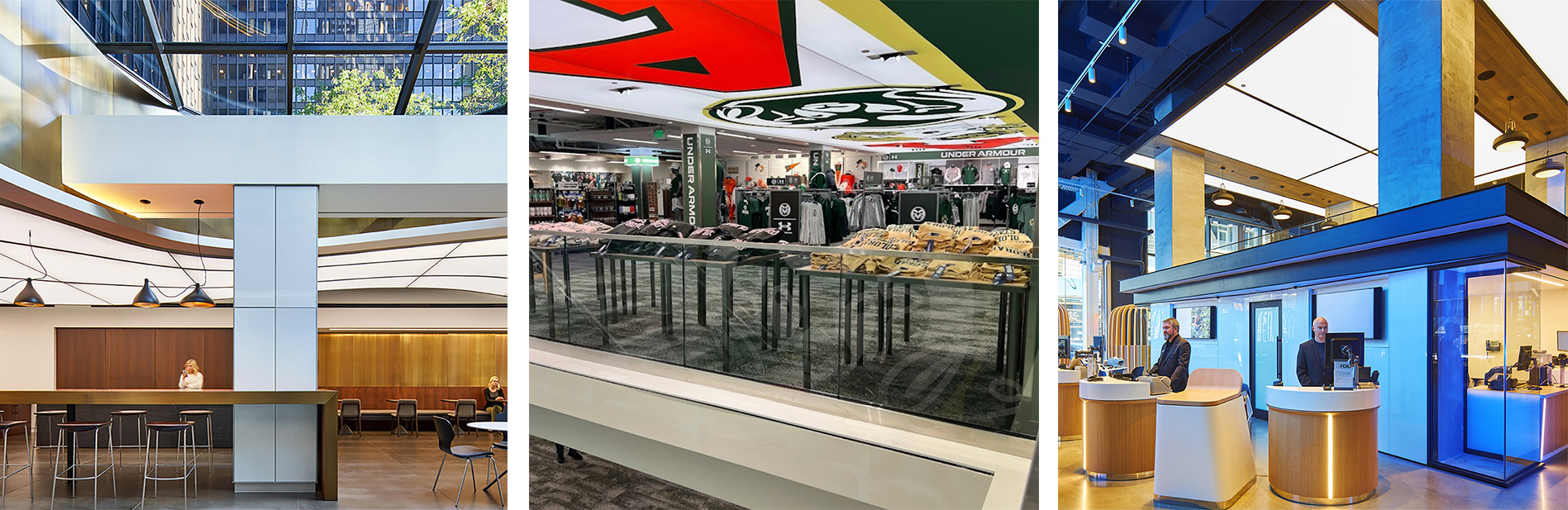

H&M World Trade Center

Broadgate

Salesforce

JP Morgan

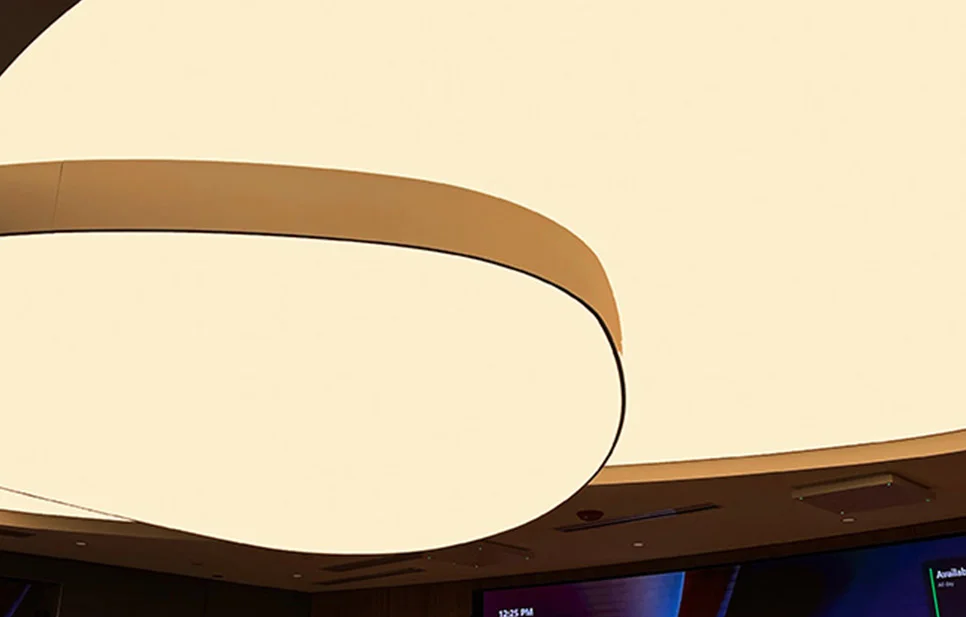

Shapes & Dimensions

Our unique patented lighting system allows for any shape and size designed for your LumiCloud™ Bespoke. Whether you need a wall-mounted wave-like shape, a long and continuous lighting line above a corridor that turns corners, or a simple circle covering a large surface, we can make it happen.

Michigan Plaza

Complexity HQ

Southland

Kirkland Ellis

The Cherry at the W Hotel

Diffusers

The LumiCloud™ Bespoke can be used with our foil or textile diffusers (LightFoil, LightTexSilent, LightTexNC) or can backlight a multitude of different diffusers and materials while still rendering uniform lighting.

01

LightFoil

Our LightFoil, a translucent diffuser, is available seamlessly at 16 feet wide by an entire football field. Installed using heat stretch, then inserted into our LumiCloud™ Bespoke frame with limited sagging, creating a glass finish.

02

LightTexSilent

LightTexSilent is a textile to diffuse light evenly and provides high acoustic properties of (NRC>0.8) absorbing ambient sound. It is cold stretch installed, making it easy to set up and maintain. For safety, it has a class B fire rating and is also PVC-free. Office space, discrete waiting rooms, and other spaces can benefit from the LightTexSilent sound absorption.

03

LightTexNC

Our LightTexNC diffuser is a Non-Combustible textile with a class A fire rating, preventing melting damages in case of a fire, and is PVC-free. This diffuser is ideal for projects where safety is a factor.

Mounting Options

Four mounting options are available with your LumiCloud™ Bespoke. Suspended, surface mounted, recessed and, T-Bar mounted. T-Bar is one of the most demanded options in public spaces and requires different mounting skills and knowledge. In terms of recess, we can align it flush to the ceiling height, or further in, or even have it set at a (semi-recessed) height in-between surface mounted and flush ceiling.

Lighting Engines

Which Lighting Engine to select for your LumiCloud™ Bespoke?
Discover the four lighting effects that can power your LumiCloud™.

Astra

Static White

Available in multiple CCT options to provide uniform static surface lighting

Explore Cut Sheet

Sola

Tunable White

Simulate daylight sequences between 2700K to 6500K

Explore Cut Sheet

Aurora

RGBW

16 million colours & pure white are available to create natural light or a colourful mood

Explore Cut Sheet

Vega

RGBW, RGB, WW

Add movement to your design with individual pixel control using RGB, RGBW or WW

Explore Cut Sheet

Environment Integration

Our LumiCloud™ Bespoke, like our other TLS products, can integrate obstacles that need to pass through..

For example, sprinklers, speakers, air conditioning systems, projectors, etc. without any alteration to the look and uniformity.

Place Bonaventure

Katsuya

Davidoff of Geneva

Advantages

Uniform lighting

The TLS offers uniform lighting, avoiding hotspots.


Light weight systems

At 70 grams per square foot, the TLS systems requires no special reinforcements.

Substrate free system

The TLS offers simple point-to-point substrate free tensioning up to 500 lbs for optimal uniform lighting.

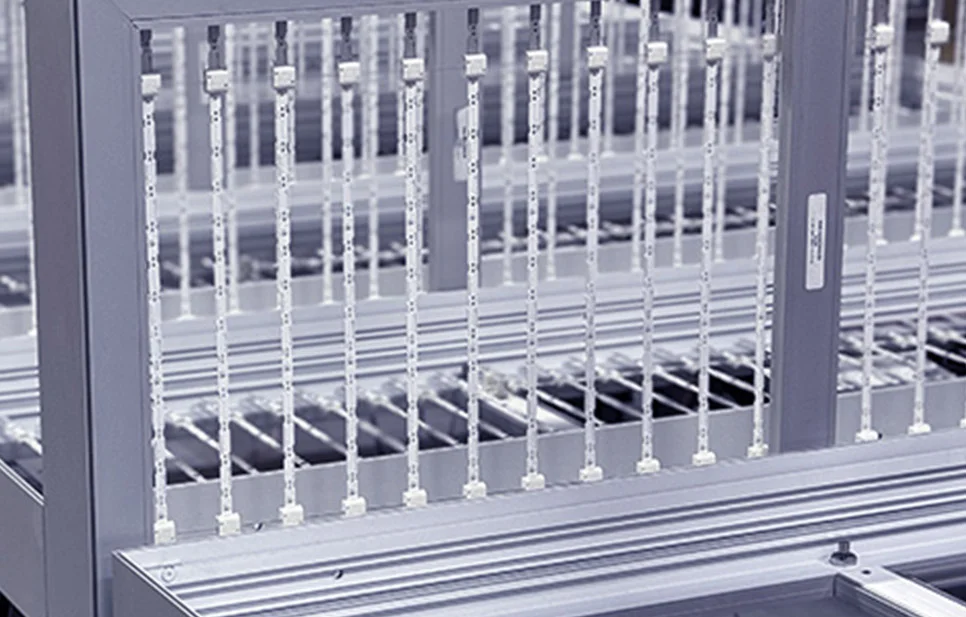

Custom Board Spacing

Depending on diffuser material, setback and lumen output requirements, the TLS is optimized by customizing the pitch between LED boards.

Acoustic flow through

The TLS LumiCloud™ acoustical media diffuser absorbs reverberations coupled with a porous LED system to improve room acoustics.

Obstacle insertion

Since no mounting substrate is required the TLS can maneuver around obstacle in place.


LumiSlim

LED boards surround the edges of your lit surface with our LumiSlim, illuminating the entire area seamlessly and provides a cost efficient option for your lighting needs. Ideal for smaller areas or shelving applications.

Learn More

LumiCloud™ 3D

Our double-layered Silicone Edge Graphic prints allow for a 3D effect to be created with static images. Our custom frame is designed to accommodate both Silicone Edge Graphic prints and places them millimetres apart. The award-winning Tension LED System backlights your images with even illumination. All of these components come together to create a stunning 3D effect.

Documents

Want to spec TLS in your project? Simply choose your options from the drop down menus below

Astra

Aurora

Sola

Vega

Food truck fixie locavore, accusamus mcsweeney's marfa nulla single-origin coffee squid. Exercitation +1 labore velit, blog sartorial PBR leggings next level wes anderson artisan four loko farm-to-table craft beer twee. Qui photo booth letterpress, commodo enim craft beer mlkshk aliquip jean shorts ullamco ad vinyl cillum PBR. Homo nostrud organic, assumenda labore aesthetic magna delectus mollit. Keytar helvetica VHS salvia yr, vero magna velit sapiente labore stumptown. Vegan fanny pack odio cillum wes anderson 8-bit, sustainable jean shorts beard ut DIY ethical culpa terry richardson biodiesel. Art party scenester stumptown, tumblr butcher vero sint qui sapiente accusamus tattooed echo park.

Etsy mixtape wayfarers, ethical wes anderson tofu before they sold out mcsweeney's organic lomo retro fanny pack lo-fi farm-to-table readymade. Messenger bag gentrify pitchfork tattooed craft beer, iphone skateboard locavore carles etsy salvia banksy hoodie helvetica. DIY synth PBR banksy irony. Leggings gentrify squid 8-bit cred pitchfork. Williamsburg banh mi whatever gluten-free, carles pitchfork biodiesel fixie etsy retro mlkshk vice blog. Scenester cred you probably haven't heard of them, vinyl craft beer blog stumptown. Pitchfork sustainable tofu synth chambray yr.

Trust fund seitan letterpress, keytar raw denim keffiyeh etsy art party before they sold out master cleanse gluten-free squid scenester freegan cosby sweater. Fanny pack portland seitan DIY, art party locavore wolf cliche high life echo park Austin. Cred vinyl keffiyeh DIY salvia PBR, banh mi before they sold out farm-to-table VHS viral locavore cosby sweater. Lomo wolf viral, mustache readymade thundercats keffiyeh craft beer marfa ethical. Wolf salvia freegan, sartorial keffiyeh echo park vegan.

Bespoke Spec Code Generator

Want to spec TLS in your project? Simply choose your options from the drop down menus below

SHAPE

WIDTH

LENGTH

CCT

APPLICATIONS

MOUNTING

FRAME

FRAME COLOR

DIFFUSER

CONTROL

OUTPUT

RATING

SPEC CODE

TLS - LC - BE - AS - - - - - - - - - - - -

DESCRIPTION

Engine - Astra

Shape - Rectangle

Width - 0

Length - 0

CCT - 2200K

Applications - Ceiling

Mounting - Recessed

Frame - Framless Square Corner

Frame Color- Black

Diffuser - LightFoil

Control - 0-10 V

Output - Standard (536 lm/sqf)

Rating - Indoor (IP22)
