LumiGrid

Able to backlight diffusers and materials for numerous applications, our narrow and lightweight LED boards, set in a lattice format extending from positive to negative stainless steel cables.

01

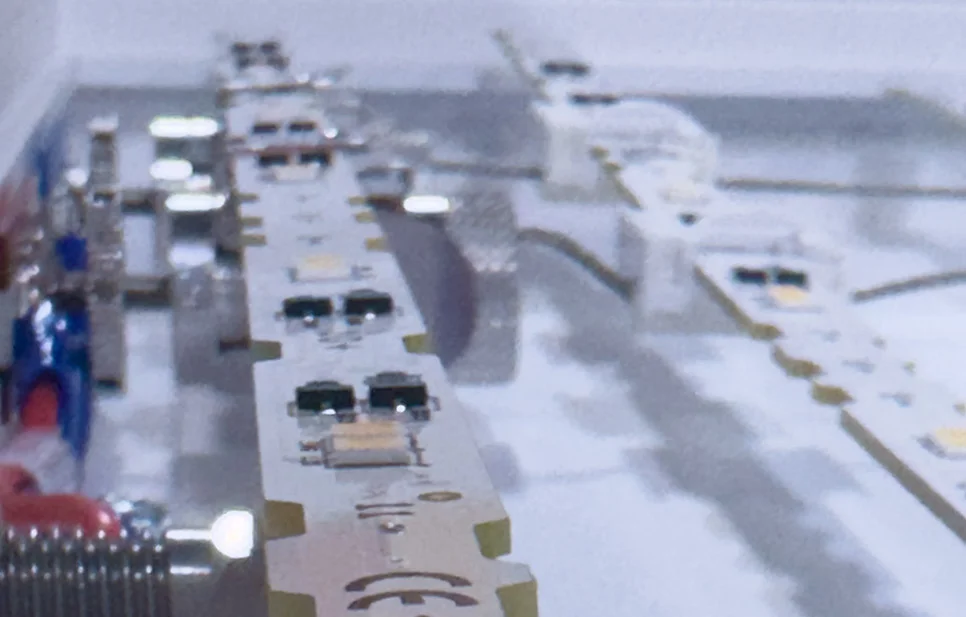

Substrate Free

Simple substrate-free point-to-point tensioning allows pass-through of obstacles and maintenance access.

02

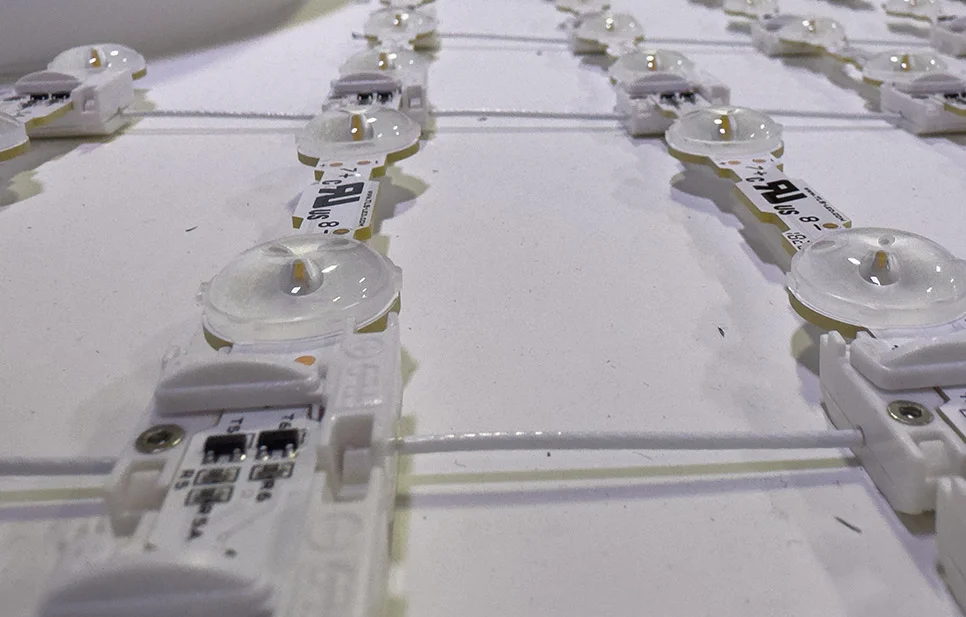

Customization

Custom board spacing allows customization of the pitch between our cuttable LED boards - Resulting in cost-saving, energy-saving, and reaching the exact lumen output desired.

03

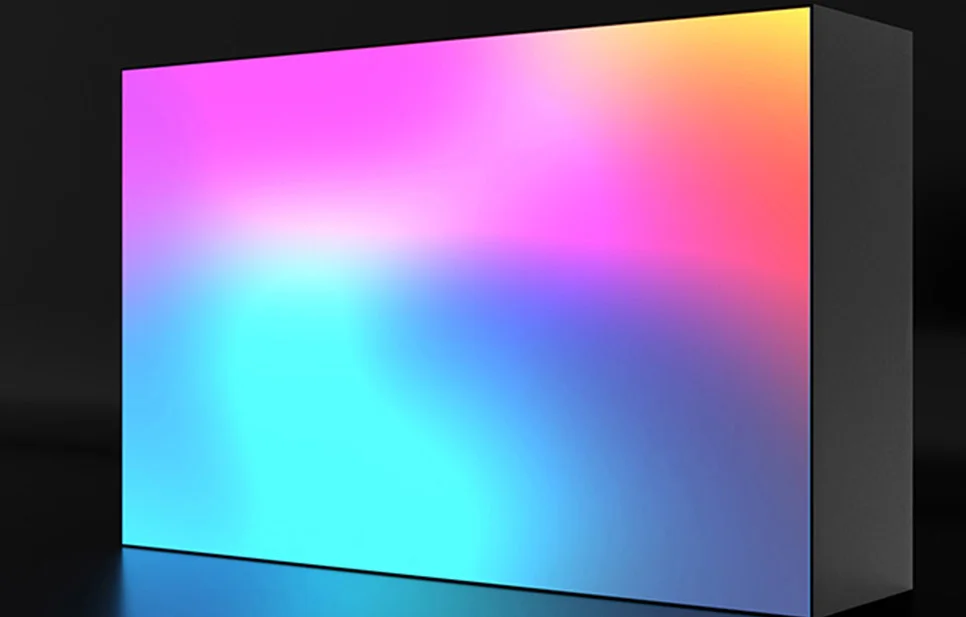

Lighting Engines

Four lighting engines are available to achieve the desired final effect - Choose between multiple levels of static CCTs, tunable white from warm to cold, or RGBW 16.7 million colours and pure white, or pixel-controlled lighting for animated shapes and text.

Project Integration

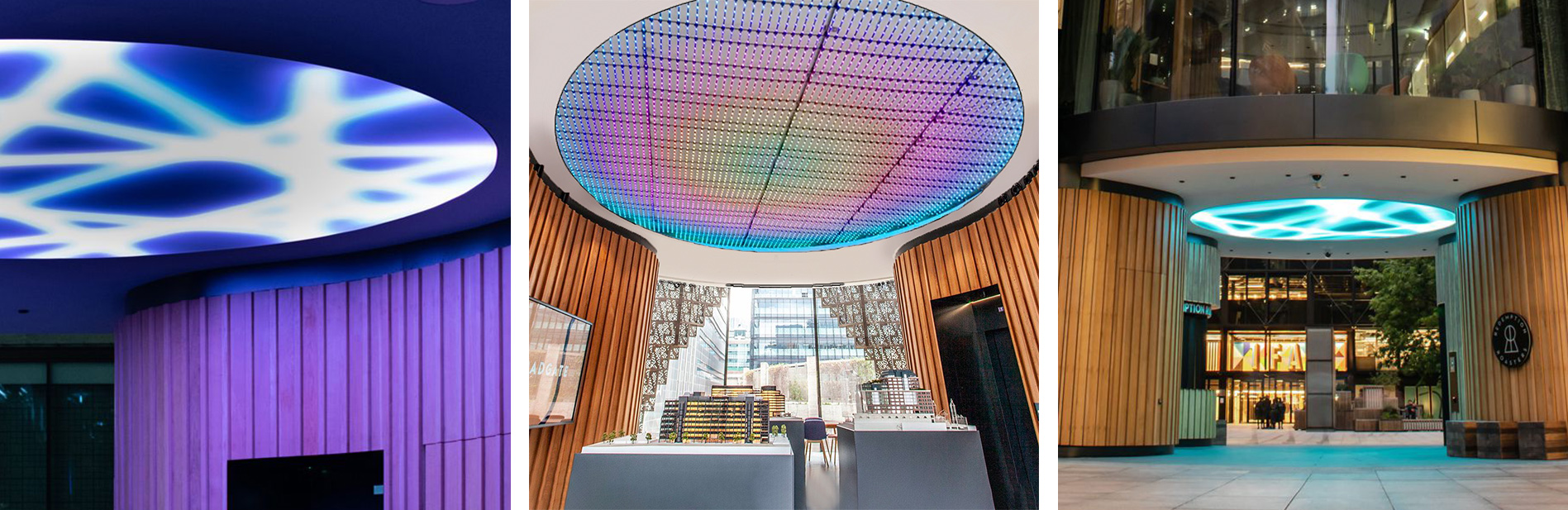

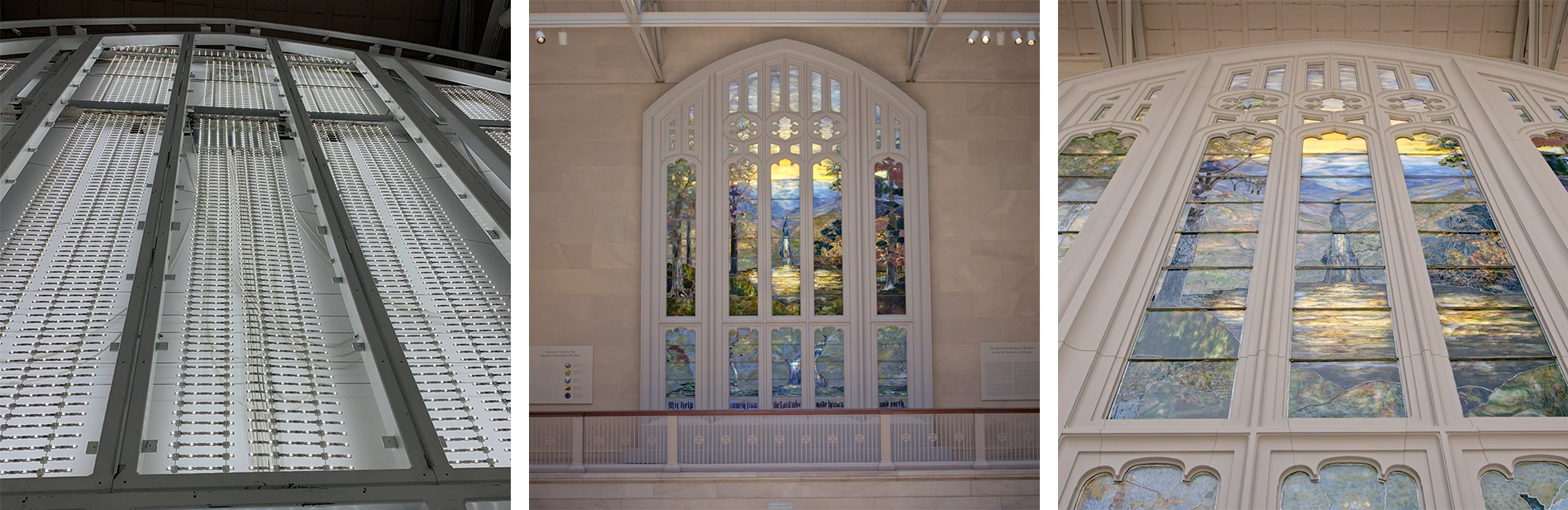

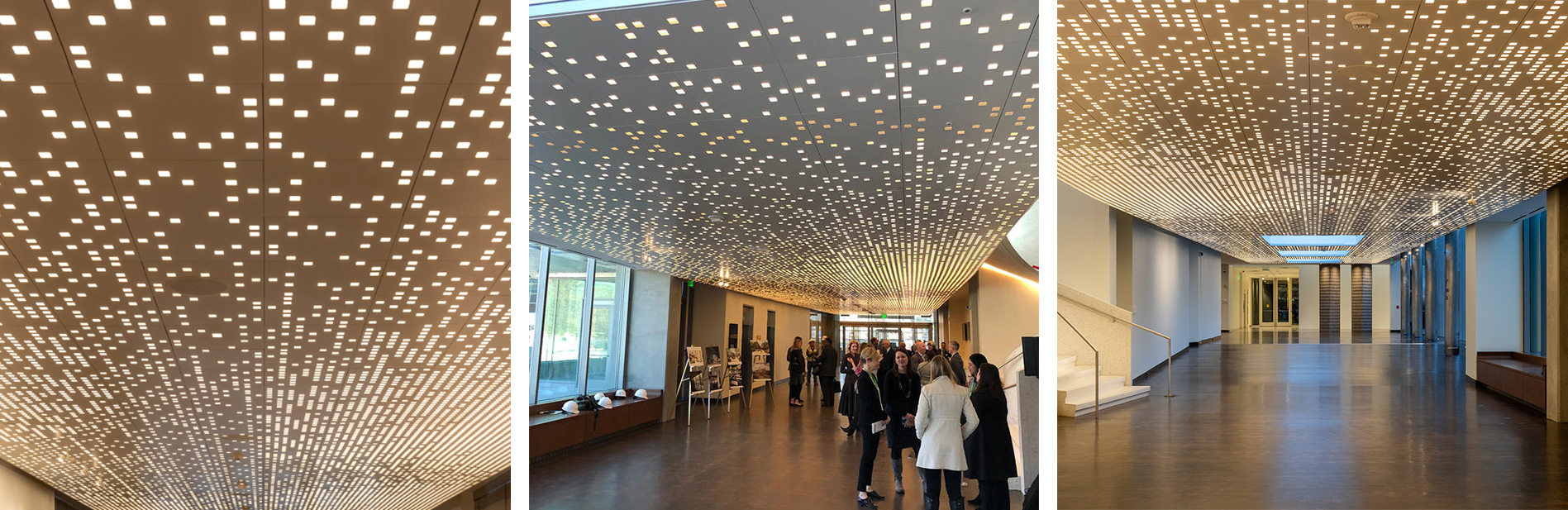

Customizable to fit any project, our LumiGrid can be inserted into a ceiling/wall cavity or fixed on a surface. Suitable for numerous types of projects.

Lighting Engines

Which Lighting Engines to select for your LumiGrid? Discover the four different lighting effects that can power your LumiGrid or any other TLS product. Choose between Astra, Sola, Aurora, Vega pixel-controlled RGB, RGBW and WW.

One column half rolled up of the static white LumiGrid Astra LED lighting system

Astra

Static White

Available in multiple CCT options to provide uniform surface lighting.

Explore Cut Sheet
One column half rolled up of the LumiGrid Sola tunable white surface lighting system

Sola

Tunable White

Simulate daylight sequences between 2700K to 6500K.

Explore Cut Sheet
One column half rolled up of the RGB LumiGrid Aurora

Aurora

RGBW

16.7 million colours or pure white to create natural light or a colourful mood.

Explore Cut Sheet
One column half rolled up of the pixel controlled Vega RGB LumiGrid

Vega

RGBW, RGB, WW

Add movement to your illuminated designs with individual pixel control.

Explore Cut Sheet

LumiGrid Spec Code Generator

Want to spec TLS in your project? Simply choose your options from the drop down menus below

SHAPE

WIDTH

LENGTH

CCT

APPLICATIONS

MOUNTING

Output

CONTROL

RATING

BOARDS

SPEC CODE

TLS - LG - AS - - - - - - - - - -

DESCRIPTION

TENSION LED SYSTEM - Lighting Grid

SUBSTRATE - LG

Engine - AS

Shape - Rectangle

Width - 0

Length - 0

CCT - 2200K

Applications - Ceiling

Mounting - Recessed

Output - Standard (536 lm/sqf)

Control - 0-10 V

Rating - Indoor

Boards - Single Sided

SHAPE

WIDTH

LENGTH

CCT

APPLICATIONS

MOUNTING

OUTPUT

CONTROL

RATING

SPEC CODE

TLS - LG - SL - - - - - - - - -

DESCRIPTION

TENSION LED SYSTEM - Lighting Grid

SUBSTRATE - LG

Engine - AS

Shape - Rectangle

Width - 0

Length - 0

CCT - 2700K - 4000K

Applications - Ceiling

Mounting - Recessed

Output - Standard (387 lm/sqf)

Control - DMX

Rating - Indoor

SHAPE

WIDTH

LENGTH

CCT

APPLICATIONS

MOUNTING

OUTPUT

CONTROL

RATING

SPEC CODE

TLS - LG - AU - - - - - - - - -

DESCRIPTION

TENSION LED SYSTEM - Lighting Grid

SUBSTRATE - LG

Engine - AS

Shape - Rectangle

Width - 0

Length - 0

CCT - RGB+W (4000K)

Applications - Ceiling

Mounting - Recessed

Output - Standard (344 lm/sqf)

Control - DMX by TLS

Rating - Indoor

SHAPE

WIDTH

LENGTH

CCT

APPLICATIONS

MOUNTING

OUTPUT

CONTROL

RATING

SPEC CODE

TLS - LG - VG - - - - - - - - -

DESCRIPTION

TENSION LED SYSTEM - Lighting Grid

SUBSTRATE - LG

Engine - AS

Shape - Rectangle

Width - 0

Length - 0

CCT - 65K

Applications - Ceiling

Mounting - Recessed

Output - Standard (344 lm/sqf)

Control - SA

Rating - Indoor
